本文旨在從三個方面（被執行的主體[Executable and Linkable Format]，執行程序的主體，執行函數的主體）闡述系統調用的全過程。

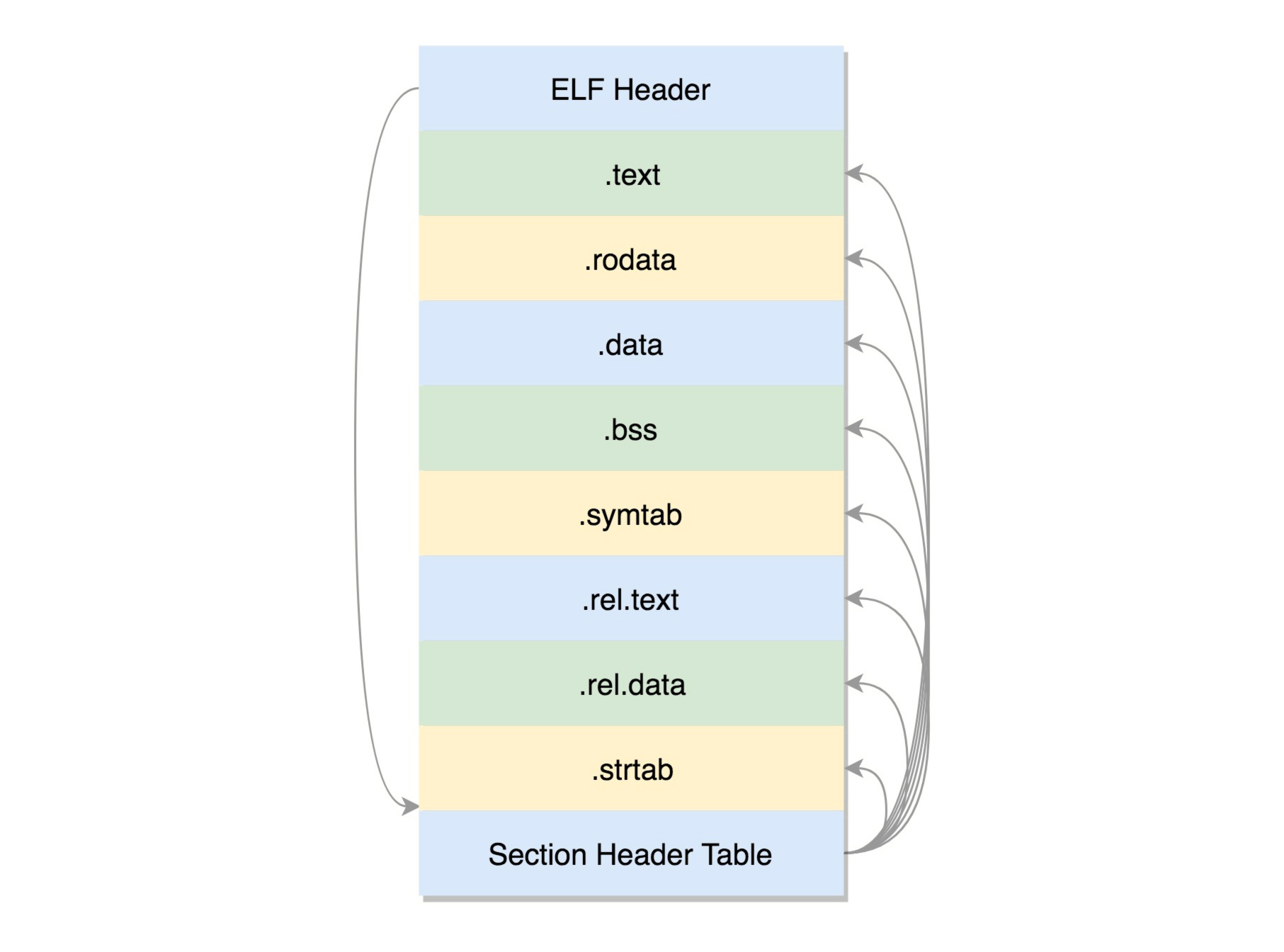

0x00 被執行的主體：ELF ELF的第一種類型：可重定位文件 可重定位文件全程：Relocatable File，環境準備，安裝軟體。
新建代碼工程文件。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 [root@learn ~] extern int create_process (char* program, char** arg_list); int create_process (char* program, char** arg_list) { pid_t child_pid; child_pid = fork (); if (child_pid != 0) return child_pid; else { execvp (program, arg_list); abort (); } } EOF [root@learn ~] extern int create_process (char* program, char** arg_list); int main () { char* arg_list[] = { "ls" , "-l" , "/etc/yum.repos.d/" , NULL }; create_process ("ls" , arg_list); return 0; } EOF
進行編譯，獲得ELF的第一種類型: 可重定位文件(Relocatable File)。
1 2 [root@learn ~] [root@learn ~]
對其内部sections進行檢視。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 [root@learn ~] There are 13 section headers, starting at offset 0x368: Section Headers: [Nr] Name Type Address Offset ⚠局部變量運行時存在 Size EntSize Flags Link Info Align 棧，運行前的.o文件不 [ 0] NULL 0000000000000000 00000000 包含。 0000000000000000 0000000000000000 0 0 0 [ 1] **.text** PROGBITS 0000000000000000 00000040 <=== 編譯后的二進制代碼 000000000000004b 0000000000000000 AX 0 0 1 [ 2] .rela.text RELA 0000000000000000 00000270 <=== 標注需重定位的函數 0000000000000078 0000000000000018 I 10 1 8 [ 3] **.data** PROGBITS 0000000000000000 0000008b <=== 已初始化的全局變量 0000000000000000 0000000000000000 WA 0 0 1 [ 4] **.bss** NOBITS 0000000000000000 0000008b <=== 未初始化的全局變量 0000000000000000 0000000000000000 WA 0 0 1 [ 5] **.rodata** PROGBITS 0000000000000000 0000008b <=== 只讀數據，常量變量 0000000000000018 0000000000000000 A 0 0 1 （這正是process.o [ 6] .comment PROGBITS 0000000000000000 000000a3 所沒有的） 000000000000002e 0000000000000001 MS 0 0 1 [ 7] .note.GNU-stack PROGBITS 0000000000000000 000000d1 0000000000000000 0000000000000000 0 0 1 [ 8] .eh_frame PROGBITS 0000000000000000 000000d8 0000000000000038 0000000000000000 A 0 0 8 [ 9] .rela.eh_frame RELA 0000000000000000 000002e8 0000000000000018 0000000000000018 I 10 8 8 [10] .symtab SYMTAB 0000000000000000 00000110 <=== 符號表，函數變量 0000000000000120 0000000000000018 11 9 8 [11] .strtab STRTAB 0000000000000000 00000230 <=== 字符串表，字符串常量 000000000000003b 0000000000000000 0 0 1 及變量名 [12] .shstrtab STRTAB 0000000000000000 00000300 0000000000000061 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)
ELF的第二種類型：可執行文件 可执行文件全稱：Executable file，先通過ar，將.o文件歸檔為.a文件，可作爲靜態鏈接庫。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 [root@learn ~] c Create the archive. The specified archive is always created if it did not exist, when you request an update. But a warning is issued unless you specify in advance that you expect to create it, by using this modifier. r Insert the files member... into archive (with replacement). This operation differs from q in that any previously existing members are deleted if their names match those being added. If one of the files named in member... does not exist, ar displays an error message, and leaves undisturbed any existing members of the archive matching that name. By default, new members are added at the end of the file; but you may use one of the modifiers a, b, or i to request placement relative to some existing member. The modifier v used with this operation elicits a line of output for each file inserted, along with one of the letters a or r to indicate whether the file was appended (no old member deleted) or replaced. [root@learn ~] [root@learn ~] File: libstaticprocess.a(process.o) <--- （只是歸檔，并非新文件） There are 12 section headers, starting at offset 0x328: Section Headers: [Nr] Name Type Address Offset Size EntSize Flags Link Info Align [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0 [ 1] .text PROGBITS 0000000000000000 00000040 000000000000003d 0000000000000000 AX 0 0 1 [ 2] .rela.text RELA 0000000000000000 00000268 0000000000000048 0000000000000018 I 9 1 8 [ 3] .data PROGBITS 0000000000000000 0000007d 0000000000000000 0000000000000000 WA 0 0 1 [ 4] .bss NOBITS 0000000000000000 0000007d 0000000000000000 0000000000000000 WA 0 0 1 [ 5] .comment PROGBITS 0000000000000000 0000007d 000000000000002e 0000000000000001 MS 0 0 1 [ 6] .note.GNU-stack PROGBITS 0000000000000000 000000ab 0000000000000000 0000000000000000 0 0 1 [ 7] .eh_frame PROGBITS 0000000000000000 000000b0 0000000000000038 0000000000000000 A 0 0 8 [ 8] .rela.eh_frame RELA 0000000000000000 000002b0 0000000000000018 0000000000000018 I 9 7 8 [ 9] .symtab SYMTAB 0000000000000000 000000e8 0000000000000138 0000000000000018 10 8 8 [10] .strtab STRTAB 0000000000000000 00000220 0000000000000042 0000000000000000 0 0 1 [11] .shstrtab STRTAB 0000000000000000 000002c8 0000000000000059 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)
后將.a文件鏈入目標文件(Relocatable File) 中去編譯即可得到ELF的第二種形態，可執行文件(Executable file) 。
1 2 3 目標文件 -L 查找當前目錄 [root@learn ~] 編譯 輸出文件 -l 指定library並補全lib和.a
對其内部sections進行檢視。
ELF Header，e_entry虛擬地址入口。
Section Header Table（段頭表，struct elf32_phdr 和 struct elf64_phdr兩個描述代碼運行于32/64位。還有p_vaddr加載内存地址）
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 [root@learn ~] total 228 -rw-r--r--. 1 root root 231449 Jun 22 05:36 redhat.repo [root@learn ~] There are 31 section headers, starting at offset 0x19e8: ⚠ 準備加載到内存執行，因 此包含需要加載的代碼塊， Section Headers: 數據段和不需要加載的部 [Nr] Name Type Address Offset 分。 Size EntSize Flags Link Info Align [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0 [ 1] .interp PROGBITS 0000000000400238 00000238 000000000000001c 0000000000000000 A 0 0 1 [ 2] .note.ABI-tag NOTE 0000000000400254 00000254 0000000000000020 0000000000000000 A 0 0 4 [ 3] .note.gnu.build-i NOTE 0000000000400274 00000274 0000000000000024 0000000000000000 A 0 0 4 [ 4] .gnu.hash GNU_HASH 0000000000400298 00000298 000000000000001c 0000000000000000 A 5 0 8 [ 5] .dynsym DYNSYM 00000000004002b8 000002b8 0000000000000090 0000000000000018 A 6 1 8 [ 6] .dynstr STRTAB 0000000000400348 00000348 000000000000004a 0000000000000000 A 0 0 1 [ 7] .gnu.version VERSYM 0000000000400392 00000392 000000000000000c 0000000000000002 A 5 0 2 [ 8] .gnu.version_r VERNEED 00000000004003a0 000003a0 0000000000000020 0000000000000000 A 6 1 8 [ 9] .rela.dyn RELA 00000000004003c0 000003c0 0000000000000018 0000000000000018 A 5 0 8 [10] .rela.plt RELA 00000000004003d8 000003d8 0000000000000060 0000000000000018 AI 5 24 8 [11] .init PROGBITS 0000000000400438 00000438 000000000000001a 0000000000000000 AX 0 0 4 [12] .plt PROGBITS 0000000000400460 00000460 0000000000000050 0000000000000010 AX 0 0 16 [13] .plt.got PROGBITS 00000000004004b0 000004b0 0000000000000008 0000000000000000 AX 0 0 8 [14] .text PROGBITS 00000000004004c0 000004c0 <=== 代碼段 00000000000001f2 0000000000000000 AX 0 0 16 [15] .fini PROGBITS 00000000004006b4 000006b4 0000000000000009 0000000000000000 AX 0 0 4 [16] .rodata PROGBITS 00000000004006c0 000006c0 <=== 代碼段 0000000000000028 0000000000000000 A 0 0 8 [17] .eh_frame_hdr PROGBITS 00000000004006e8 000006e8 000000000000003c 0000000000000000 A 0 0 4 [18] .eh_frame PROGBITS 0000000000400728 00000728 0000000000000114 0000000000000000 A 0 0 8 [19] .init_array INIT_ARRAY 0000000000600e10 00000e10 0000000000000008 0000000000000008 WA 0 0 8 [20] .fini_array FINI_ARRAY 0000000000600e18 00000e18 0000000000000008 0000000000000008 WA 0 0 8 [21] .jcr PROGBITS 0000000000600e20 00000e20 0000000000000008 0000000000000000 WA 0 0 8 [22] .dynamic DYNAMIC 0000000000600e28 00000e28 00000000000001d0 0000000000000010 WA 6 0 8 [23] .got PROGBITS 0000000000600ff8 00000ff8 0000000000000008 0000000000000008 WA 0 0 8 [24] .got.plt PROGBITS 0000000000601000 00001000 0000000000000038 0000000000000008 WA 0 0 8 [25] .data PROGBITS 0000000000601038 00001038 <=== 數據段 0000000000000004 0000000000000000 WA 0 0 1 [26] .bss NOBITS 000000000060103c 0000103c <=== 數據段 0000000000000004 0000000000000000 WA 0 0 1 [27] .comment PROGBITS 0000000000000000 0000103c 000000000000002d 0000000000000001 MS 0 0 1 [28] .symtab SYMTAB 0000000000000000 00001070 <=== 不加載到内存段 0000000000000660 0000000000000018 29 48 8 [29] .strtab STRTAB 0000000000000000 000016d0 <=== 不加載到内存段 0000000000000208 0000000000000000 0 0 1 [30] .shstrtab STRTAB 0000000000000000 000018d8 000000000000010c 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)
運行結果
1 2 3 [root@learn ~] total 228 -rw-r--r--. 1 root root 231449 Jun 22 05:36 redhat.repo
ELF的第三種類型：共享對象文件 共享對象文件全稱：Shared Object，先通過gcc，由.o文件編譯為.so文件，可得到動態鏈接庫，亦就是ELF第三種類型 。
對其内部sections進行檢視。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 [root@learn ~] There are 28 section headers, starting at offset 0x18c0: Section Headers: [Nr] Name Type Address Offset Size EntSize Flags Link Info Align [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0 [ 1] .note.gnu.build-i NOTE 00000000000001c8 000001c8 0000000000000024 0000000000000000 A 0 0 4 [ 2] .gnu.hash GNU_HASH 00000000000001f0 000001f0 000000000000003c 0000000000000000 A 3 0 8 [ 3] .dynsym DYNSYM 0000000000000230 00000230 0000000000000168 0000000000000018 A 4 1 8 [ 4] .dynstr STRTAB 0000000000000398 00000398 00000000000000c4 0000000000000000 A 0 0 1 [ 5] .gnu.version VERSYM 000000000000045c 0000045c 000000000000001e 0000000000000002 A 3 0 2 [ 6] .gnu.version_r VERNEED 0000000000000480 00000480 0000000000000020 0000000000000000 A 4 1 8 [ 7] .rela.dyn RELA 00000000000004a0 000004a0 00000000000000c0 0000000000000018 A 3 0 8 [ 8] .rela.plt RELA 0000000000000560 00000560 0000000000000048 0000000000000018 AI 3 22 8 [ 9] .init PROGBITS 00000000000005a8 000005a8 000000000000001a 0000000000000000 AX 0 0 4 [10] .plt PROGBITS 00000000000005d0 000005d0 0000000000000040 0000000000000010 AX 0 0 16 [11] .plt.got PROGBITS 0000000000000610 00000610 0000000000000010 0000000000000000 AX 0 0 8 [12] .text PROGBITS 0000000000000620 00000620 0000000000000122 0000000000000000 AX 0 0 16 [13] .fini PROGBITS 0000000000000744 00000744 0000000000000009 0000000000000000 AX 0 0 4 [14] .eh_frame_hdr PROGBITS 0000000000000750 00000750 000000000000001c 0000000000000000 A 0 0 4 [15] .eh_frame PROGBITS 0000000000000770 00000770 0000000000000064 0000000000000000 A 0 0 8 [16] .init_array INIT_ARRAY 0000000000200df8 00000df8 0000000000000008 0000000000000008 WA 0 0 8 [17] .fini_array FINI_ARRAY 0000000000200e00 00000e00 0000000000000008 0000000000000008 WA 0 0 8 [18] .jcr PROGBITS 0000000000200e08 00000e08 0000000000000008 0000000000000000 WA 0 0 8 [19] .data.rel.ro PROGBITS 0000000000200e10 00000e10 0000000000000008 0000000000000000 WA 0 0 8 [20] .dynamic DYNAMIC 0000000000200e18 00000e18 00000000000001c0 0000000000000010 WA 4 0 8 [21] .got PROGBITS 0000000000200fd8 00000fd8 0000000000000028 0000000000000008 WA 0 0 8 [22] .got.plt PROGBITS 0000000000201000 00001000 0000000000000030 0000000000000008 WA 0 0 8 [23] .bss NOBITS 0000000000201030 00001030 0000000000000008 0000000000000000 WA 0 0 1 [24] .comment PROGBITS 0000000000000000 00001030 000000000000002d 0000000000000001 MS 0 0 1 [25] .symtab SYMTAB 0000000000000000 00001060 0000000000000570 0000000000000018 26 44 8 [26] .strtab STRTAB 0000000000000000 000015d0 00000000000001f5 0000000000000000 0 0 1 [27] .shstrtab STRTAB 0000000000000000 000017c5 00000000000000f5 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)
之後.so文件同樣可鏈入目標文件（可重定位文件）中去編譯出來。
1 2 形態2 形態1 形態3 [root@learn ~]
運行結果，運行時需要手動指定load的路徑。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 [root@learn ~] [root@learn ~] total 228 -rw-r--r--. 1 root root 231449 Jun 22 05:36 redhat.repo [root@learn ~] There are 31 section headers, starting at offset 0x1940: Section Headers: [Nr] Name Type Address Offset Size EntSize Flags Link Info Align [ 0] NULL 0000000000000000 00000000 0000000000000000 0000000000000000 0 0 0 [ 1] .interp PROGBITS 0000000000400238 00000238 <--- ld-linux.so 000000000000001c 0000000000000000 A 0 0 1 負責運行時進行鏈接 [ 2] .note.ABI-tag NOTE 0000000000400254 00000254 0000000000000020 0000000000000000 A 0 0 4 [ 3] .note.gnu.build-i NOTE 0000000000400274 00000274 0000000000000024 0000000000000000 A 0 0 4 [ 4] .gnu.hash GNU_HASH 0000000000400298 00000298 0000000000000038 0000000000000000 A 5 0 8 [ 5] .dynsym DYNSYM 00000000004002d0 000002d0 00000000000000d8 0000000000000018 A 6 1 8 [ 6] .dynstr STRTAB 00000000004003a8 000003a8 0000000000000080 0000000000000000 A 0 0 1 [ 7] .gnu.version VERSYM 0000000000400428 00000428 0000000000000012 0000000000000002 A 5 0 2 [ 8] .gnu.version_r VERNEED 0000000000400440 00000440 0000000000000020 0000000000000000 A 6 1 8 [ 9] .rela.dyn RELA 0000000000400460 00000460 0000000000000018 0000000000000018 A 5 0 8 [10] .rela.plt RELA 0000000000400478 00000478 0000000000000030 0000000000000018 AI 5 24 8 [11] .init PROGBITS 00000000004004a8 000004a8 000000000000001a 0000000000000000 AX 0 0 4 [12] .plt PROGBITS 00000000004004d0 000004d0 <---過程鏈接表 PLT 0000000000000030 0000000000000010 AX 0 0 16 Procedure Linkage Table， [13] .plt.got PROGBITS 0000000000400500 00000500 0000000000000008 0000000000000000 AX 0 0 8 [14] .text PROGBITS 0000000000400510 00000510 00000000000001b2 0000000000000000 AX 0 0 16 [15] .fini PROGBITS 00000000004006c4 000006c4 0000000000000009 0000000000000000 AX 0 0 4 [16] .rodata PROGBITS 00000000004006d0 000006d0 0000000000000028 0000000000000000 A 0 0 8 [17] .eh_frame_hdr PROGBITS 00000000004006f8 000006f8 0000000000000034 0000000000000000 A 0 0 4 [18] .eh_frame PROGBITS 0000000000400730 00000730 00000000000000f4 0000000000000000 A 0 0 8 [19] .init_array INIT_ARRAY 0000000000600e00 00000e00 0000000000000008 0000000000000008 WA 0 0 8 [20] .fini_array FINI_ARRAY 0000000000600e08 00000e08 0000000000000008 0000000000000008 WA 0 0 8 [21] .jcr PROGBITS 0000000000600e10 00000e10 0000000000000008 0000000000000000 WA 0 0 8 [22] .dynamic DYNAMIC 0000000000600e18 00000e18 00000000000001e0 0000000000000010 WA 6 0 8 [23] .got PROGBITS 0000000000600ff8 00000ff8 0000000000000008 0000000000000008 WA 0 0 8 [24] .got.plt PROGBITS 0000000000601000 00001000 <--- 全局偏移量表 GOT 0000000000000028 0000000000000008 WA 0 0 8 Global Offset Table [25] .data PROGBITS 0000000000601028 00001028 0000000000000004 0000000000000000 WA 0 0 1 [26] .bss NOBITS 000000000060102c 0000102c 0000000000000004 0000000000000000 WA 0 0 1 [27] .comment PROGBITS 0000000000000000 0000102c 000000000000002d 0000000000000001 MS 0 0 1 [28] .symtab SYMTAB 0000000000000000 00001060 0000000000000600 0000000000000018 29 47 8 [29] .strtab STRTAB 0000000000000000 00001660 00000000000001cf 0000000000000000 0 0 1 [30] .shstrtab STRTAB 0000000000000000 0000182f 000000000000010c 0000000000000000 0 0 1 Key to Flags: W (write), A (alloc), X (execute), M (merge), S (strings), I (info), L (link order), O (extra OS processing required), G (group), T (TLS), C (compressed), x (unknown), o (OS specific), E (exclude), l (large), p (processor specific)
工作流程（編譯時建立PLT代替去找，PLT因爲GOT告知，因此會問GOT，GOT引路讓PLT去加載ld-linux.so直接在内存中找），之所以必須PLT去找因爲其作用為存放stub代碼，GOT存放so對應的真實代碼地址。
dynamiccreateprocess→ PLT⇋GOT→ld-linux.so→libdynamicprocess.so(create_process)
它们是怎么工作的，使得程序运行的时候，可以将 so 文件动态链接到进程空间的呢？dynamiccreateprocess 这个程序要调用 libdynamicprocess.so 里的 create_process 函数。由于是运行时才去找，编译的时候，压根不知道这个函数在哪里，所以就在 PLT 里面建立一项 PLT[x]。这一项也是一些代码，有点像一个本地的代理，在二进制程序里面，不直接调用 create_process 函数，而是调用 PLT[x]里面的代理代码，这个代理代码会在运行的时候找真正的 create_process 函数。去哪里找代理代码呢？这就用到了 GOT，这里面也会为 create_process 函数创建一项 GOT[y]。这一项是运行时 create_process 函数在内存中真正的地址。如果这个地址在 dynamiccreateprocess 调用 PLT[x]里面的代理代码，代理代码调用 GOT 表中对应项 GOT[y]，调用的就是加载到内存中的 libdynamicprocess.so 里面的 create_process 函数了。但是 GOT 怎么知道的呢？对于 create_process 函数，GOT 一开始就会创建一项 GOT[y]，但是这里面没有真正的地址，因为它也不知道，但是它有办法，它又回调 PLT，告诉它，你里面的代理代码来找我要 create_process 函数的真实地址，我不知道，你想想办法吧。PLT 这个时候会转而调用 PLT[0]，也即第一项，PLT[0]转而调用 GOT[2]，这里面是 ld-linux.so 的入口函数，这个函数会找到加载到内存中的 libdynamicprocess.so 里面的 create_process 函数的地址，然后把这个地址放在 GOT[y]里面。下次，PLT[x]的代理函数就能够直接调用了。

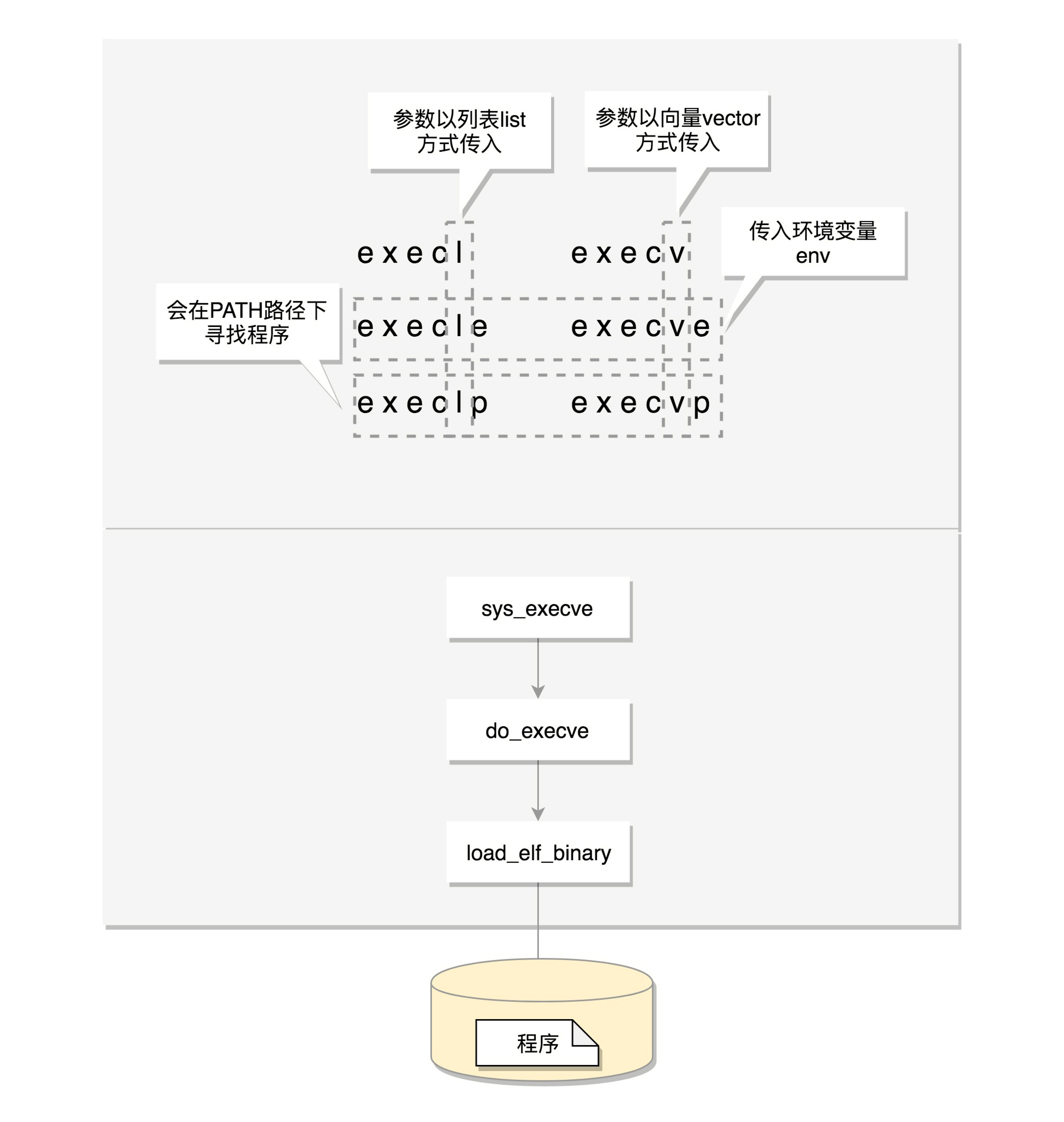

0x01 執行程序的主體：load_elf_binary等函數 系統中大體通過以下的調用順序執行：
1 sys_execve->do_execve->do_execveat_common->exec_binprm->search_binary_handler。
而exec函數的命名還遵循以下規則：
包含 p 的函数（execvp, execlp）会在 PATH 路径下面寻找程序；
不包含 p 的函数需要输入程序的全路径；
包含 v 的函数（execv, execvp, execve）以数组的形式接收参数；
包含 l 的函数（execl, execlp, execle）以列表的形式接收参数；
包含 e 的函数（execve, execle）以数组的形式接收环境变量。
0x02 執行函數的主體：進程 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 [root@deployer ~] 進程 父進程 發起地 無括號，用戶態，父進程為1，systemd init進程 問號為後臺 中括號，内核態，父進程為2，kthreadd内核綫程 UID PID PPID C STIME TTY TIME CMD root 1 0 0 2018 ? 00:00:29 /usr/lib/systemd/systemd --system --deserialize 21 root 2 0 0 2018 ? 00:00:00 [kthreadd] root 3 2 0 2018 ? 00:00:00 [ksoftirqd/0] root 5 2 0 2018 ? 00:00:00 [kworker/0:0H] root 9 2 0 2018 ? 00:00:40 [rcu_sched] ...... root 337 2 0 2018 ? 00:00:01 [kworker/3:1H] root 380 1 0 2018 ? 00:00:00 /usr/lib/systemd/systemd-udevd root 415 1 0 2018 ? 00:00:01 /sbin/auditd root 498 1 0 2018 ? 00:00:03 /usr/lib/systemd/systemd-logind ...... root 852 1 0 2018 ? 00:06:25 /usr/sbin/rsyslogd -n root 2580 1 0 2018 ? 00:00:00 /usr/sbin/sshd -D root 29058 2 0 Jan03 ? 00:00:01 [kworker/1:2] root 29672 2 0 Jan04 ? 00:00:09 [kworker/2:1] root 30467 1 0 Jan06 ? 00:00:00 /usr/sbin/crond -n root 31574 2 0 Jan08 ? 00:00:01 [kworker/u128:2] ...... root 32792 2580 0 Jan10 ? 00:00:00 sshd: root@pts/0 root 32794 32792 0 Jan10 pts/0 00:00:00 -bash root 32901 32794 0 00:01 pts/0 00:00:00 ps -ef
0x03 結語 終於啃完進程了，耗時好幾天，果然寫博客方便整理思路。
ELF的三種形態，.o , 二進制文件, .so ，.a只是.o的簡單歸檔。
既然ELF是被執行的主體，自然系統調用到最後需要load_elf_binary函數。
而在系統層面，用戶態的祖宗進程和内核態的祖宗進程分別以自己的方式進行函數的調用。
個人學習筆記，如果有誤，歡迎指正。
